Vacuum Nitriding Furnace Nitriding Furnace Ammonia Gas Gas Nitriding Furnace For Sale

Name: Vacuum Nitriding Furnace Nitriding Furnace Ammonia Gas Gas Nitriding Furnace For Sale
Brand: IRIS
Price: 30000.00 USD

Quality Vacuum Nitriding Furnace Nitriding Furnace Ammonia Gas Gas Nitriding Furnace For Sale for sale

Brand Name : IRIS

Certification : CE

Place of Origin : China

MOQ : 1

Price : $30000.00-$50000.00

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000sets

Delivery Time : 30days

Product name : Vacuum Nitriding Furnace

Application : metal heat treatment

Max temperature : 650 degree

Voltage : 380V

Temperature control accuracy : accurate temperature control

Vacuum control accuracy : ±10Pa

Gas control accuracy : ±0.1L

Power : 160kw

Color : orange and blue

Warranty : 1year

Contact Now

Vacuum Nitriding Furnace Nitriding Furnace Ammonia Gas Gas Nitriding Furnace For Sale

Equipment composition

1.Furnace body

(1) Furnace hood

(2) The bottom of the oven

(3) Workbench: 1 floor in total

(4)Vacuum system: one

2. Three-input six-output step-up transformer

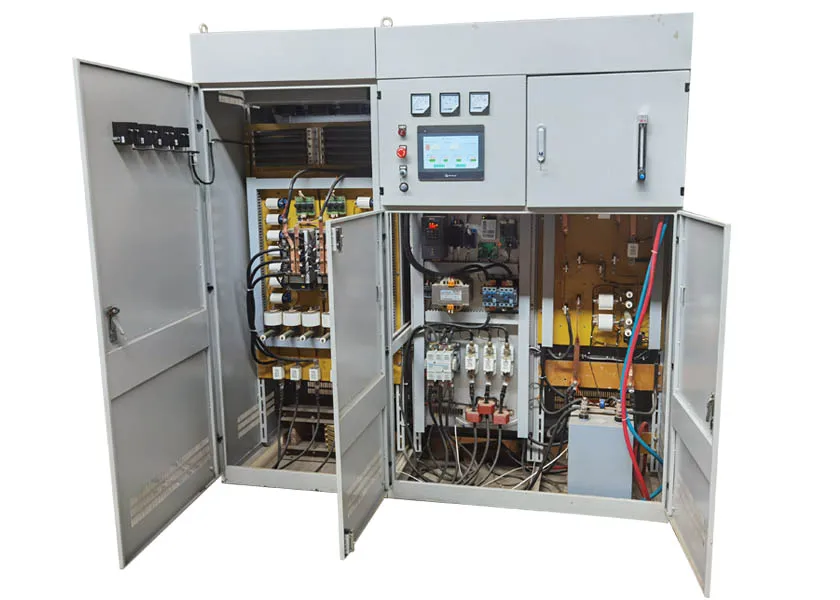

3. Control: three closed-loop adjustment systems, one set of main control PLC

(1) Oven temperature closed loop: thermocouple, temperature control instrument, chopper, IGBT form a temperature control closed loop system to realize parameter setting and measurement value display

(2) Closed-loop furnace pressure: vacuum gauge, vacuum control instrument and vacuum pump form a closed-loop vacuum control system to realize parameter setting and temperature value display. measure

(3) Closed-loop gas control: mass gas flow meter and flow control instrument form a closed-loop flow control system to realize parameter setting and measurement value display

(4) The main control PLC: coordination and control of each action, acquisition and output of analog quantities

Parameter

Project	unit	25A	50A	75A	100A
Ultimate vacuum	Pa	6.67
Pressure rise rate	Pa/min	0.0133
Vacuum pump	pc	2x-4	2x-8	2x-8	2x-8
Vacuum pump	pc	2x-4	2x-8	2x-8	2x-15
Furnace chamber size	mm	Φ760*800	Φ1060*950	Φ920*1200	Φ1100*1200
Maximum heating area	cm²	1.25*104	2.5*104	3.5*104	5*104
loading capacity	Kg	600	800	1000	1200
Maximum operating temperature	℃	650	650	650	650
